ID896 - Supply Delivery Distribution Labels Overview & Sample:

This process will print labels with the location remarks to be added to each individual item before they are boxed together. Each 'individual box' will have the distribution points for them to easily deliver the toner to the appropriate user/device.

Jump to a specific section by clicking a link

Overview | Samples | Variables | Alert Functionality | OnDemand Report Filters | Best Practices & Tips | Related Alerts |



Click to Subscribe

Overview

Overview

This is designed for a situation where you ship multiple supplies in a single box to a large customer location. The person who opens the box then has to figure out what floor/department each item needs to go to. This process will print labels with the location remarks to be added to each individual item before they are boxed together. Each 'individual box' will have the distribution details (Equip ID#, Model, Ser#, Location Remarks) for them to easily deliver the toner to the appropriate user vs. having to carry around a piece of paper and check off etc.

**NOTE: This process ONLY supports the Zebra GC420d or its replacement Zebra ZD220 / ZD220D printer... DO NOT ask us to support other printers as its not possible**



Type of Output: On Demand eAuto Custom Report



*  *  *

Sample

Sample




*  *  *

Variables

Variables

This process has no variables

*  *  *



Alert Functionality

Alert Functionality

1. This process ONLY supports the Zebra GC420d or its replacement Zebra ZD220 / ZD220D printer... DO NOT ask us to support other printers as its not possible.

2. We only support 4 x 2 labels and no other sizes

3. The Custom Report will print ONE label per item quantity with the ordered by / equip#, model, equip location remarks / item , item description. So if customer ordered one box of each color toner for a machine, we print one label for each box. If they order quantity 2 of an item, we print one label for each unique quantity, so every individual 'item' on the order will have it's own label to be applied. User will run the custom report specifying the 'Shipment Number'.

4. The items must be 'shipped' in eAutomate before you can print the labels.

5. The workstation/PC must have the default windows printers set to the Zebra printer

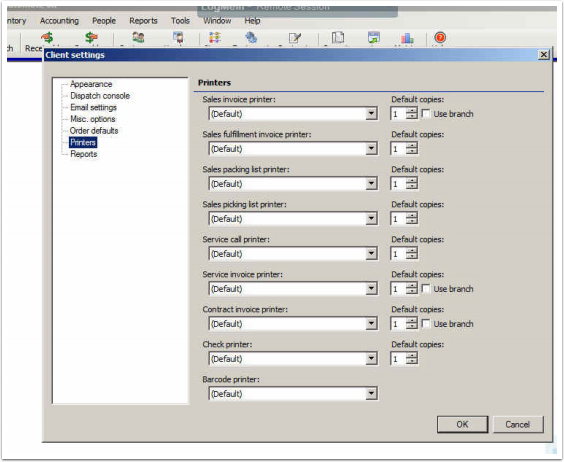

6. Set eAuto the workstation/PC printers for other items at the eAuto client level via Tools \ Client Settings \ Printer to Defaults pointing to another printer for Packing Lists, Picking Lists, Sales Invoice, Contract Invoice, Service Invoice, etc:


7. Zebra ZD220 / ZD220D printer settings:

On Workstation/PC go to Printers, find ZDesigned ZD220-203dpl ZPL Properties, click on Preferences:


Select Page Setup, change to Media Settings Width and Height, click OK to save:


Select Print Options, set Offsets Top and Left along with Darkness, click OK to save:


**Be sure to test a few times as you may need to adjust some of these settings.



*  *  *



OnDemand Report Filters

OnDemand Report Filters

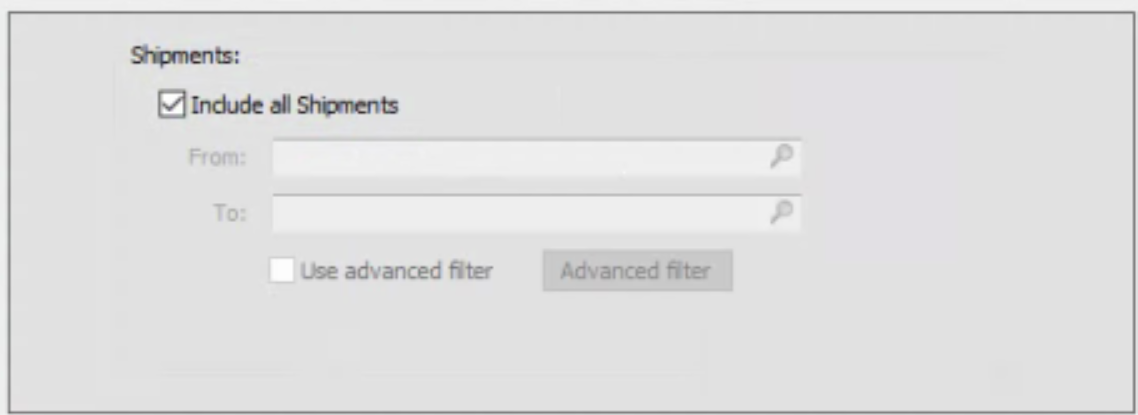

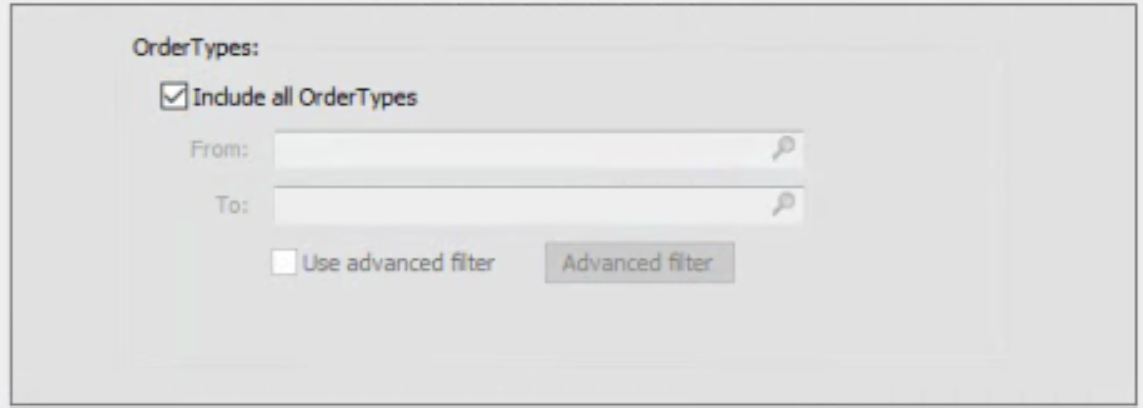

Can filter by Shipment Date, Shipments, and/or Order Types:

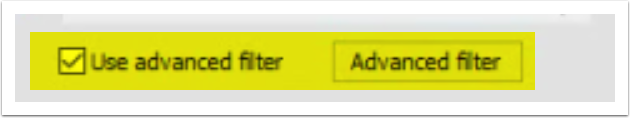

Use Advanced Filter option for Shipments and Order Types to filter at more detailed level:


*  *  *



Best Practices & Tips

Best Practices & Tips

1. This process is built for a very specific printer and label size.  We do not make customizations to the report due to the difficulty involved.  However, users can download the Crystal Report provided and make the changes themselves.

2. If you're on 16.1, you must install the updated CRRuntime on your eAuto server available in downloads on ECI's website

3. UserID must be associated with the Employee Record in eAuto in order for the entered by field to populate (see alert ID221 to be notified on any missing)

4. Shipping Contact must be populated on each line item within the Sales Order for that contact to populate on the label

5. It has been recommended by a user of this process to export the label to PDF as once it is a PDF, then it is easier to change sizes without having to set the printer as the default.



*  *  *

Related Alerts

Related Alerts

ID663 - Sales Order Packing List with Location Info and/or Bar Code



*  *  *



Set up for discontinued model Zebra GC420d printer:

Use the Zebra GC420d printer using the EPL print driver. Please download driver from here:https://www.zebra.com/us/en/support-downloads/printers/desktop/gc420d.html#downloadlistitem_9aa


You can use the attachment (below) to import the GC420d Label Printer Settings. Follow these steps to get to location for importing:

  • Go to the Print Driver Properties of the Zebra Label Printer

  •  Click on the “Advanced“ Tab

  •  Click on “Printer Defaults

  •  A new pop-up driver settings window will open up

  •  Next Click on the “Import/Export Settings” Tab

  •  Click on the “Export” Button

  •  Save the file with the name of “GC420d Printer Settings.drs” to your desktop or document folder.

OR

Here are the print driver settings to use:






Client using this provided us the following steps for setting GC420d printer:

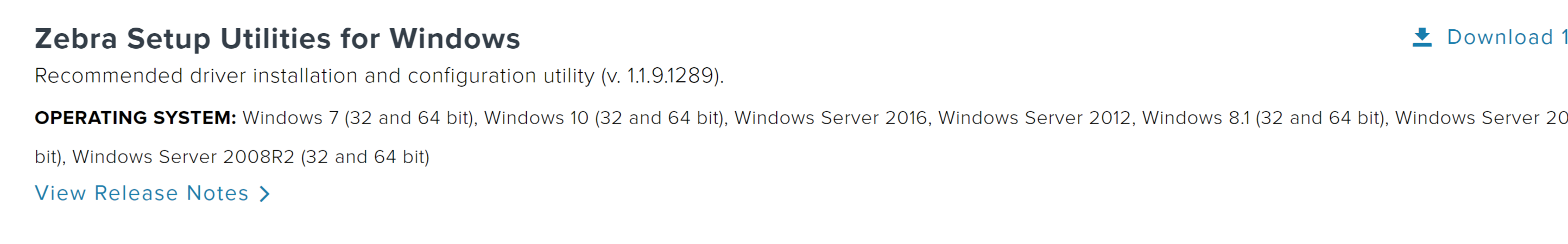

Install Zebra Setup Utilities manually (not from a server)

Run zebra set up utility

Install a printer

Let it pre load printer install

Pick install new printer

Pick GC420d (EPL)    (DO NOT CHANGE PRINTER NAME)

Install Splwow64

Install the fonts

And after completing

Do all CEO J settings for 4x2, set stocks to 4x2 under options and make default on and other to none.



Log in to eAuto

Run a normal report

Then run ID896 Check output,

IT WILL USE ZEBRA PRINTER!!!!!! Only for report  ID896 - all other reports it will use you default print driver and use 8 x 11
